GRS/Alstom Signaling Parts Information

I am selling railroad signaling parts on eBay and on my own standalone webstore on my website. Please click on the links below to visit my sites and view my inventory. If you are interested in more information about the signaling parts I am selling on my websites, click the appropriate links below or contact me!

http://signaling.chrispohorence.com/

http://stores.ebay.com/Christopher-Pohorence

Click on links below to view diagrams. Some downloads are large and may take some time to download completely .

Manuals
Wiring Diagrams and Figures
Adjustable Resistor Data and Wiring Diagrams

An adjustable resistor is used in a circuit to reduce operational voltage to the lamp. It is also used to protect LED lamp boards from overload due to excessive incoming operational voltage. Additional protection is also provided if a lightening arrester connected to the circuit.

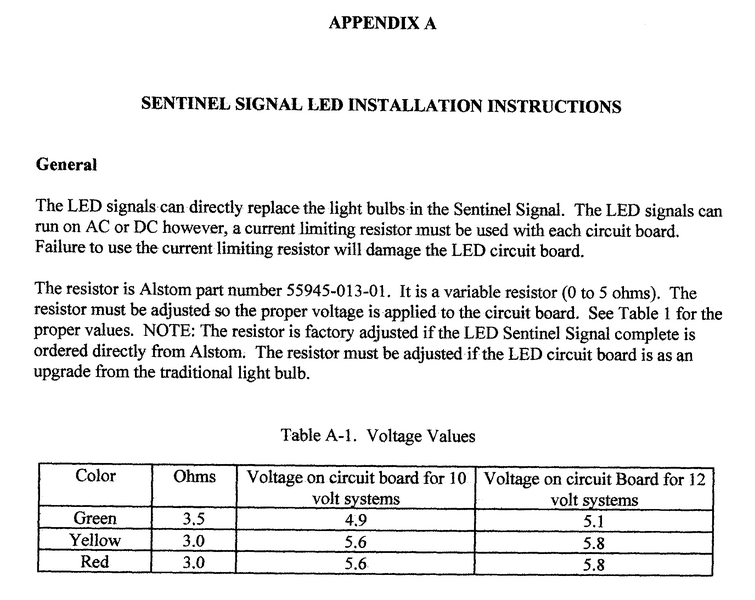

  1. Appendex A from Manual:

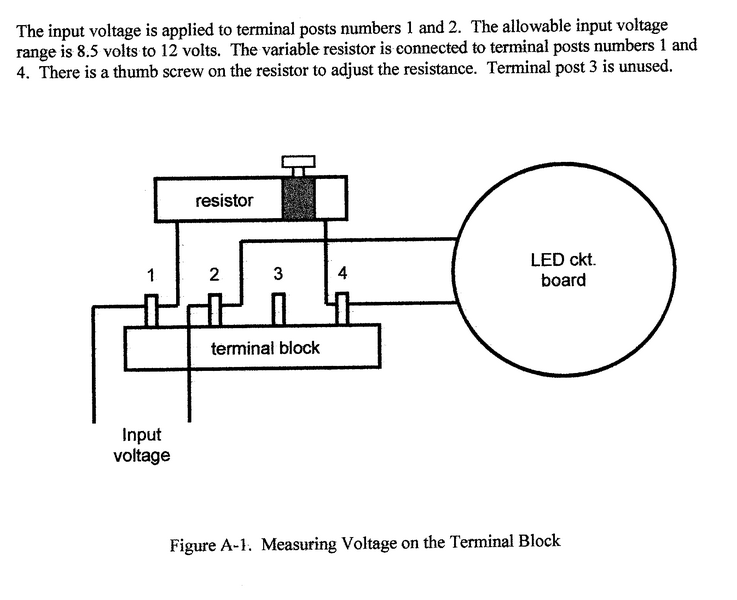

  2. Measuring Voltage with Adjustable Resistor: Figure of complete circut with adjustable resistor and LED light board.

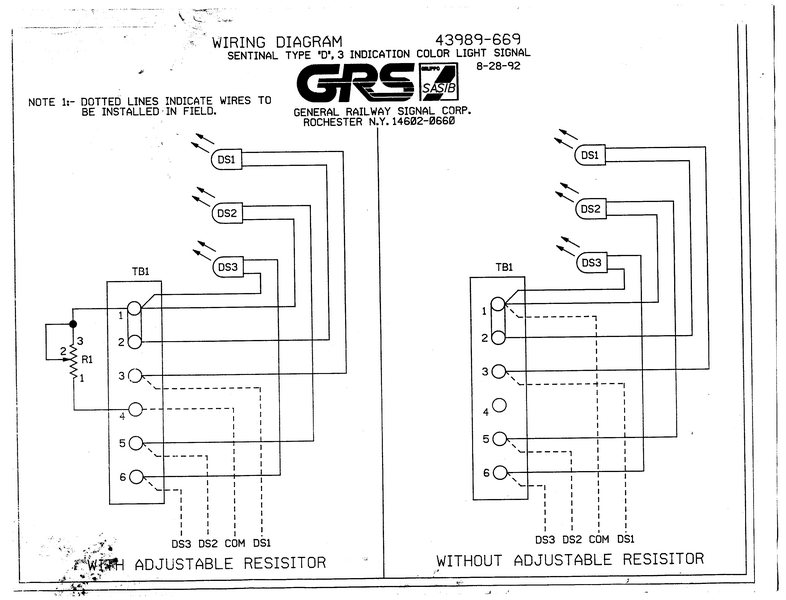

  3. Wiring Diagram -- 43989-669: Diagram clearly shows signal wiring circuits with and without adjustable resistors. Also shows the use of a circuit jumper (P/N ).

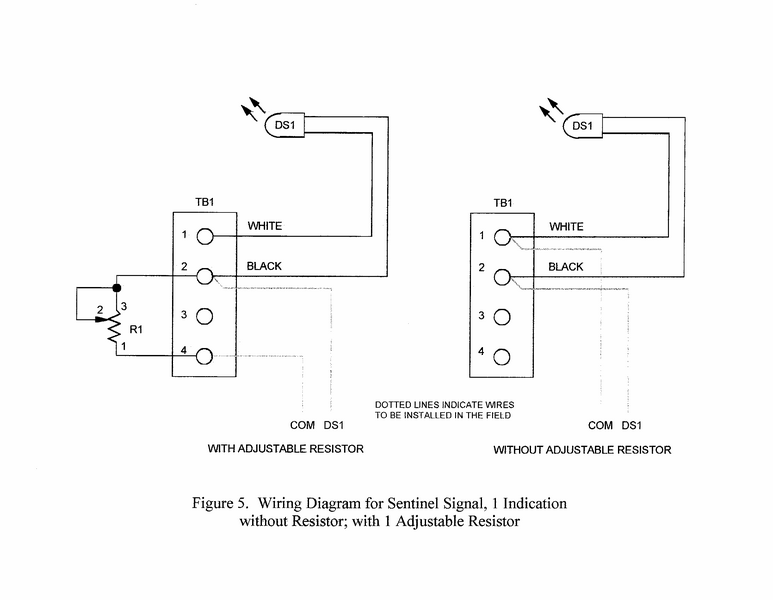

  4. Wiring Diagram: Sentinal Siganl with 1 Indication with adjustable resistor and 1 without adjsutable resistor.
Signal Diagrams and Information

The links above are for additional wiring instruction and terminal block placement.

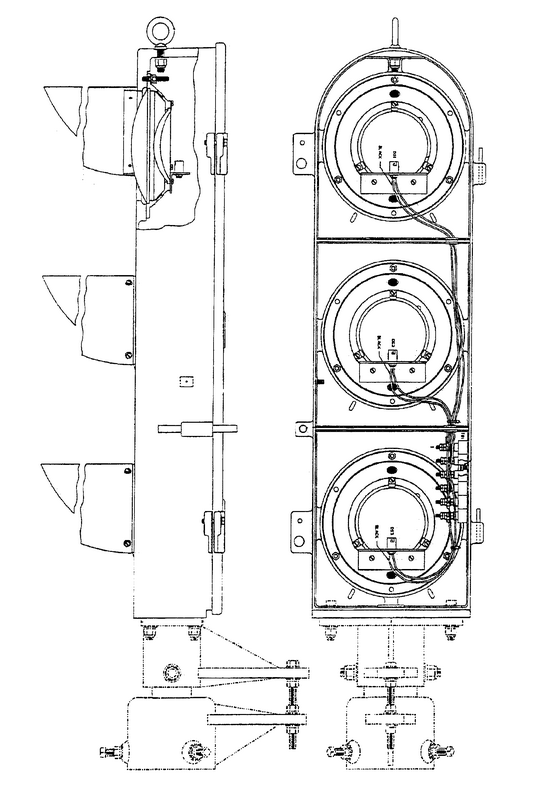

  1. Open cabient figure: Figure shows application of terminal blocks and adjustable resistor.

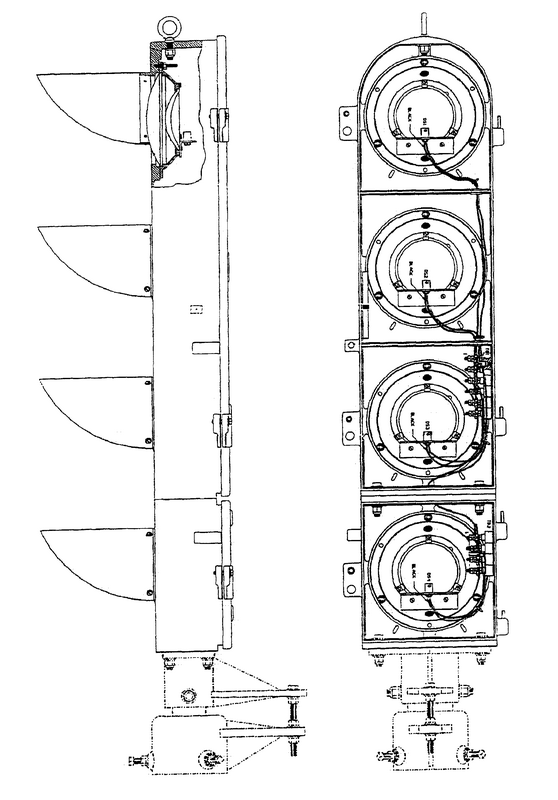

  2. Open cabient figure: Figure shows application of of both 4 and 6 terminal blocks and adjustable resistor.

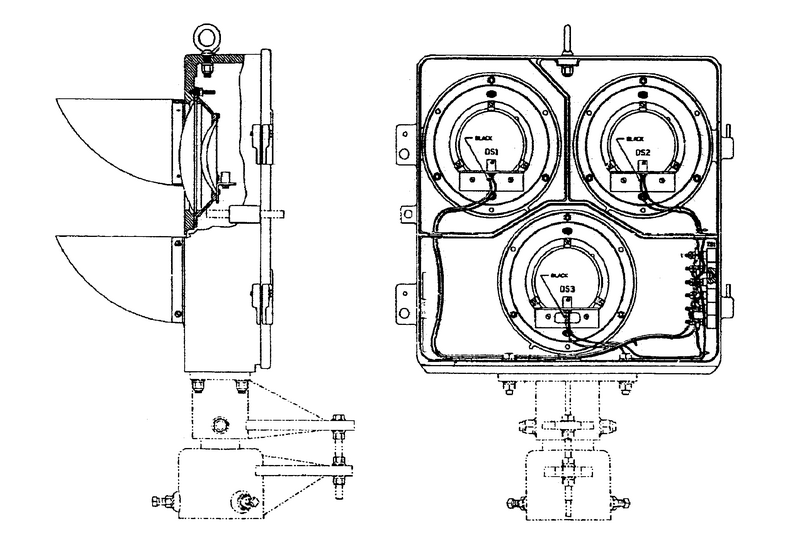

  3. Side cabient figure: Figure shows application of terminal blocks and adjustable resistor.

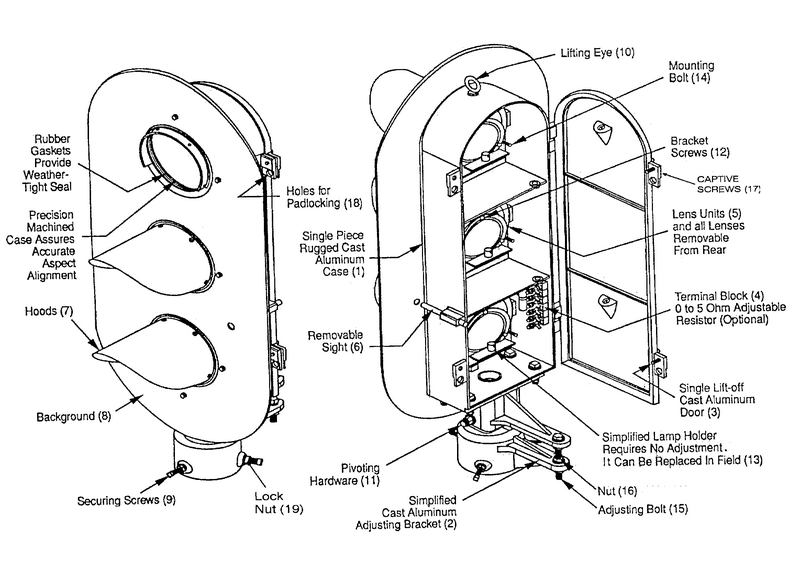

  4. Open cabient figure: Figure shows application of terminal blocks and adjustable resistor.
These are pages are copies of controlled documents. I am using them to help me sell parts I obtained. I am not connected with or related to GRS (General Railway Signal) or Alstom Transportation.
